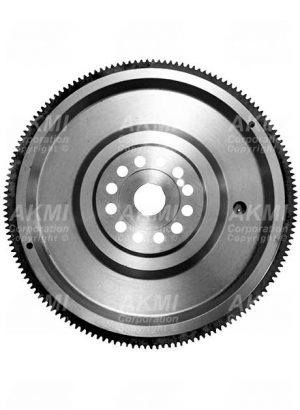

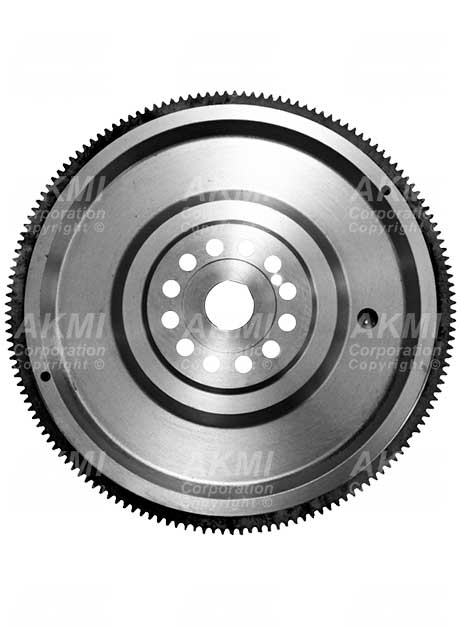

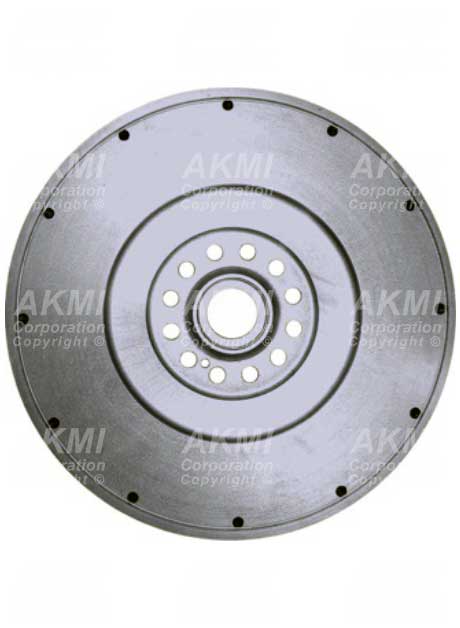

AK-2569653 Aftermarket CAT C15 Flywheel

Application:

• Aftermarket Caterpillar Flywheels
  3406E (Late)
  C15
• Design: Flat with 10″ Opening
• Mounting: 12 Bolt Holes
• Size: SAE #1
• Clutch: 15″
• Ring Gear:  AK-2569651 20″ O.D. – 113 Teeth
• Pilot Bearing: 306

Cross Reference Numbers:

• AK-2441636

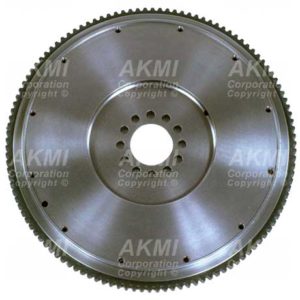

Note: Must use Shorter Mounting Bolts (Part # AK-5B0841) if using this flywheel to replace AK-4P4797

NOTE: RING GEAR IS INCLUDED WITH ALL FLYWHEELS PURCHASED FROM AKMI.

Just Call us at 1 800 247 7669 for pricing information about this product or click on the button below to send us a message.
