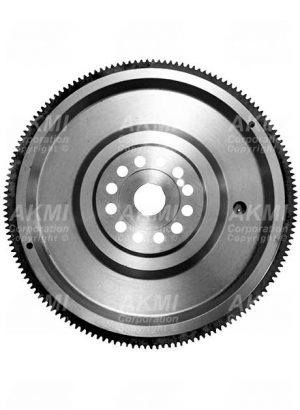

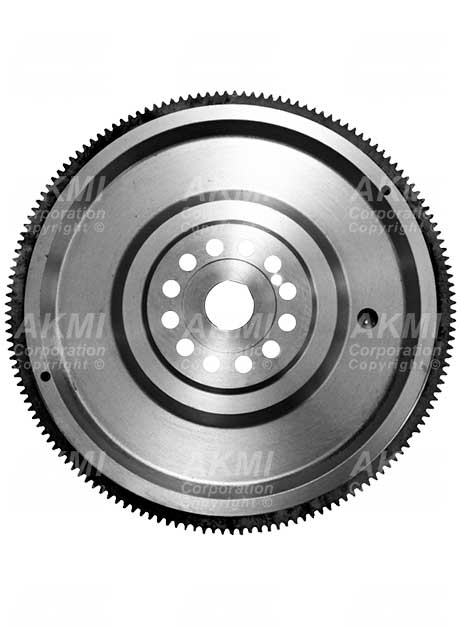

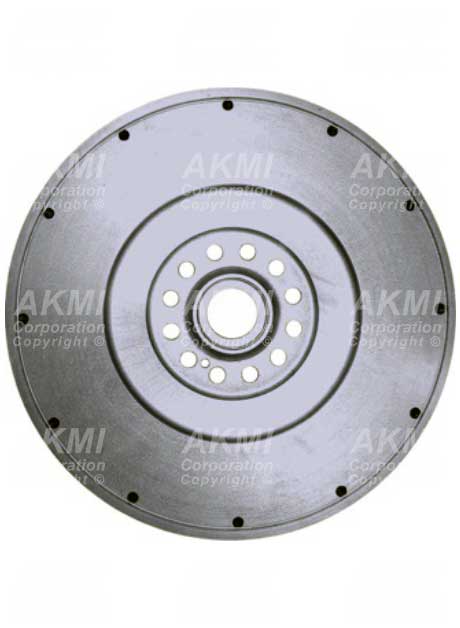

AK-2569653 Aftermarket CAT C15 Flywheel

Application:

  • Aftermarket Caterpillar Flywheels
    3406E (Late)
    C15
  • Design: Flat with 10″ Opening
  • Mounting: 12 Bolt Holes
  • Size: SAE #1
  • Clutch: 15″
  • Ring Gear:  AK-2569651 20″ O.D. – 113 Teeth
  • Pilot Bearing: 306

Cross Reference Numbers:

  • AK-2441636

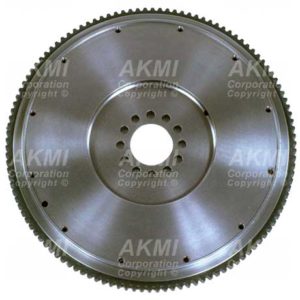

Note: Must use Shorter Mounting Bolts (Part # AK-5B0841) if using this flywheel to replace AK-4P4797

NOTE: RING GEAR IS INCLUDED WITH ALL FLYWHEELS PURCHASED FROM AKMI.

Just Call us at 1 800 247 7669 for pricing information about this product or click on the button below to send us a message.

Description

This Flywheel fits in your Aftermarket CAT C15 and 3406 (late)

Call us 1 800 247 7669 for more details.
